Configure PhonerLite for phone numbers and Cloud PBX
Version: 2.88 (last tested 3.27)
Operating system: Windows
Manufacturer's website: www.phonerlite.de
With the free PhonerLite softphone, you can use VoIP telephony simply via your computer with Windows operating system without having to purchase a desk phone. You can both make and receive calls with your PC and, by using a headset, you have a convenient and inexpensive alternative to an IP telephone.
1. manual configuration
You can download the PhonerLite software from the manufacturer's website and then install it on your PC.
2. fill in proxy/registrar and realm/domain
In the first step "Provider", please select the manual configuration.
The entry for Proxy/Registrar and Realm/Domain depends on whether you are using a Cloud PBX end device account or a phone number with PhoneLite.

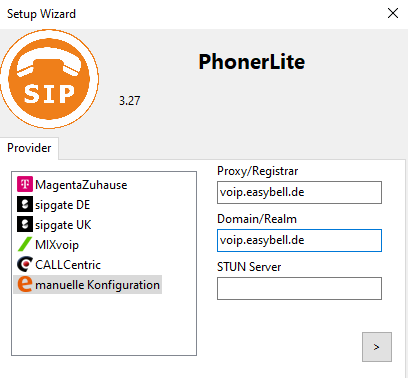

For a phone number: voip.easybell.de

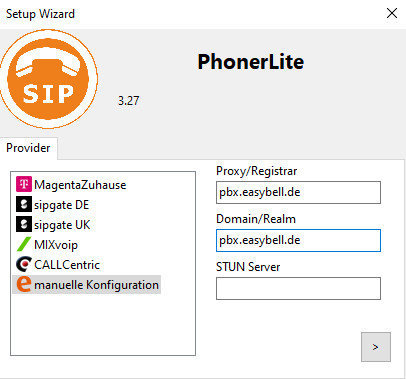

For an end device account of the Cloud PBX: pbx.easybell.de
Where can I find my SIP login details?
The SIP access data differs depending on the product. If you have difficulties finding the data, read "Where can I find my SIP access data?".
Phone numbers (blocks)

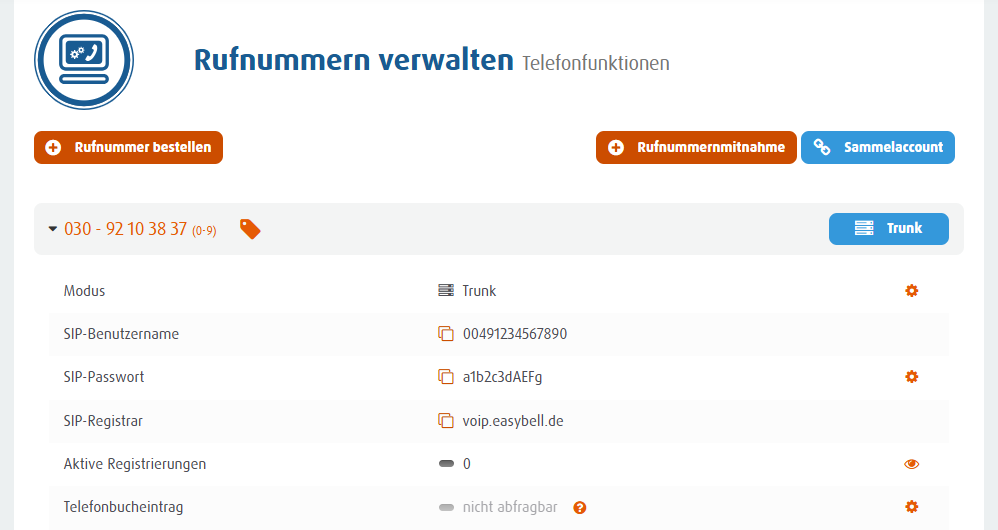

SIP access data: In the customer portal under "Manage phone numbers" in the detailed view of the respective phone numbers.
Registrar: voip.easybell.de
Cloud PBX

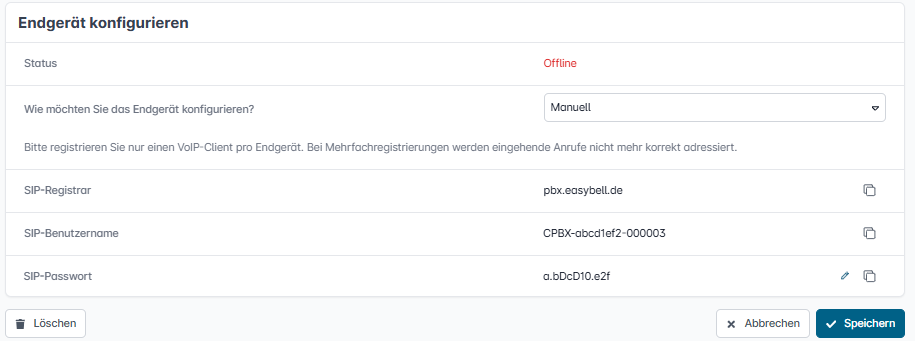

SIP access data: In the Cloud PBX in the settings of the respective device under "Configure device".
Registrar: pbx.easybell.de
3. login data

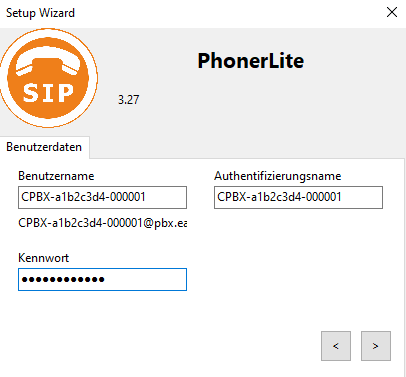

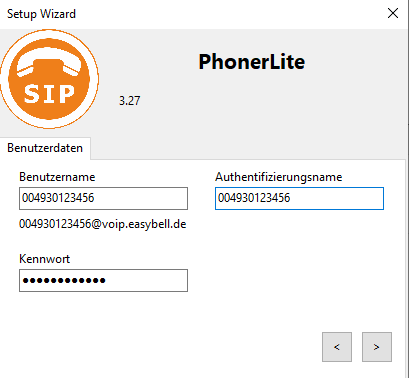

In the next view, enter the user name, authentication name and password. The user name and authentication name are always identical.
You can find all details in the Easybell customer portal.

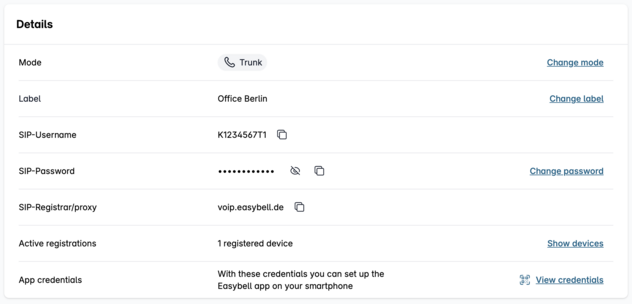

For phone numbers: Phone functions → Manage phone numbers
For Cloud PBX end devices: Edit end device → Configure end device
User & authentication name: SIP user name
Password: SIP password
Confirm by clicking on the right arrow.
4. further settings

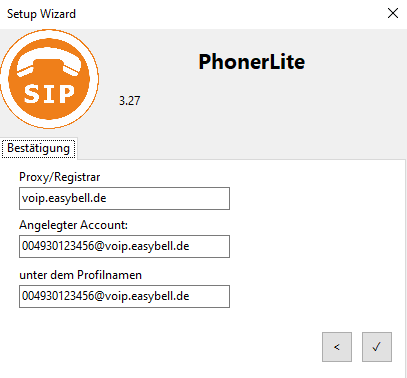

After checking the details, please click the tick at the bottom right to confirm.

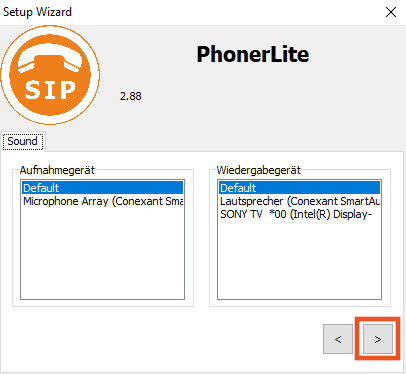

In the next step, you can select the recording and playback device that you would like to use for PhonerLite.
5. complete setup & check registration

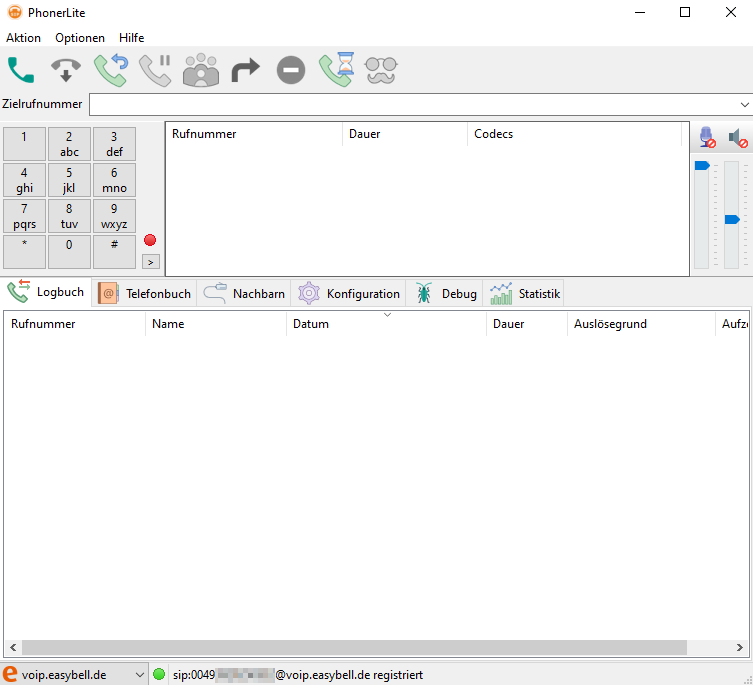

You should now have successfully registered. You can recognize this by the status at the bottom of the PhonerLite window.
Only for Cloud PBX: Set connection type

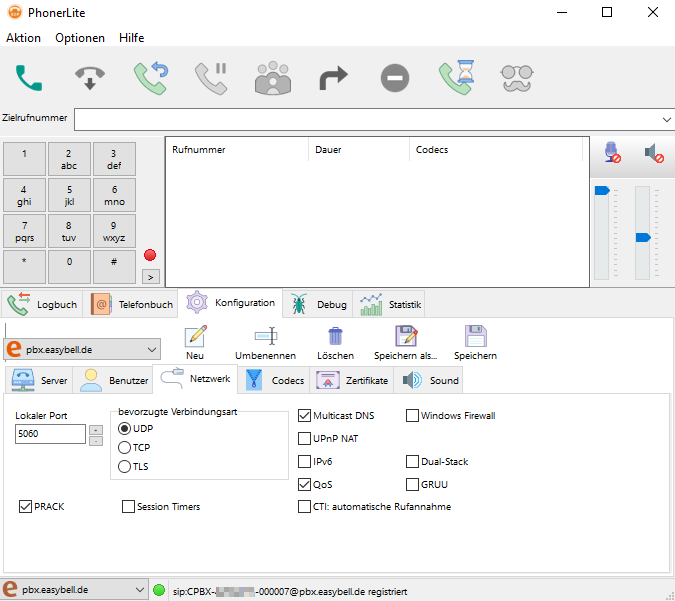

When setting up a Cloud PBX end device, please open the network settings and make the following adjustments:
Preferred connection type: TCP
