How can I configure my Speedport router?
The following guide is made with a Speedport W701V. The user interface of the different Speedports have similar designs, so this one should work for all types.
This is a guide for the DSL configuration. You can find a guide for the configuration of the telephone here. (German)
The process is based on a delivery-stated device. We recommend you reset the device before you start the configuration.
The Speedports only work with our ADSL2+ connections. For VDSL connections we can only give support for VDSL compatible FRITZ!Boxes.
1. connect the device
Connect the Speedport to the power supply and connect the router to the telephone socket using a suitable cable (a splitter is not necessary with our complete connections, simply plug the TAE plug into the centre connection of your telephone socket. Plug the other end into the connection on your Speedport labelled "T-DSL").
Connect your computer to the router via LAN cable or WLAN.
2. establish a connection to the surface
Open the configuration interface of your router by entering 192.168.2.1 in the address bar of your browser.

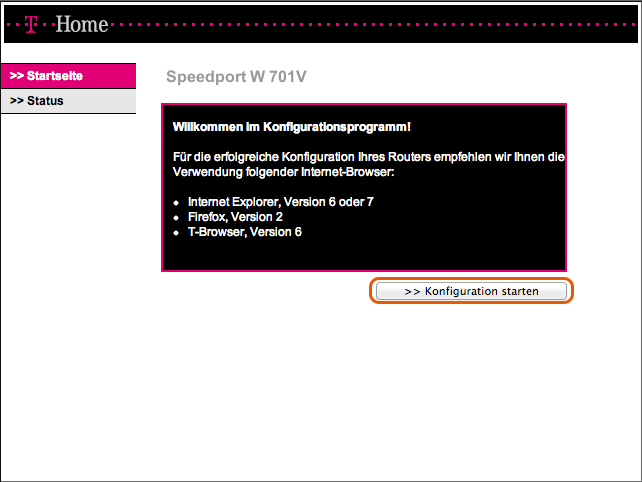

Click on "Start configuration".
Enter your device password (0000 when delivered) and click on "OK".
3. call up the settings for the Internet connection

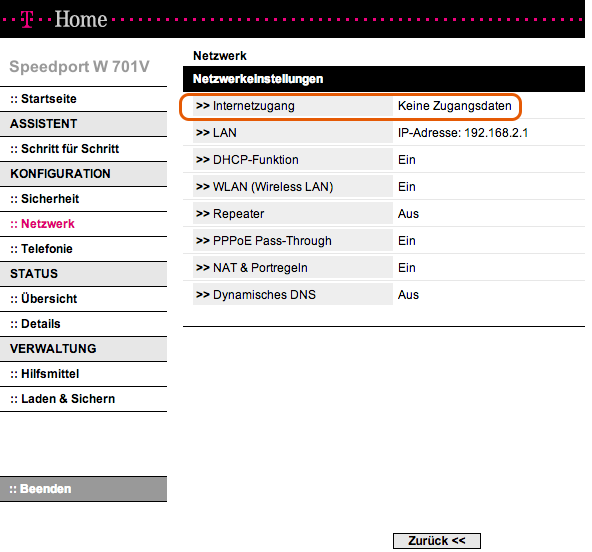

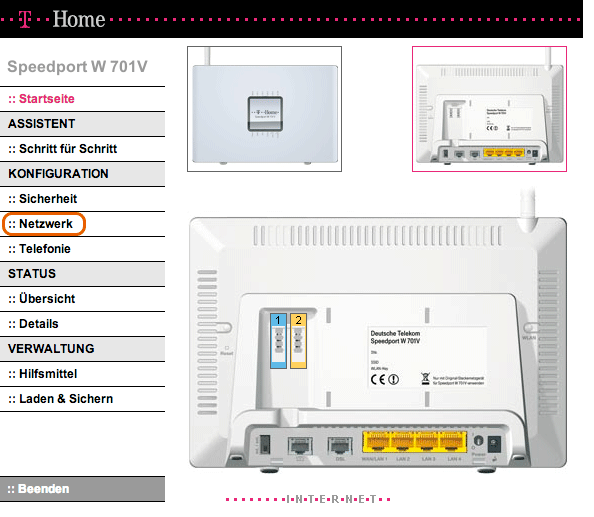

Click on "Network" in the left-hand menu. Click on "Internet access" in the centre.
4. enter access data

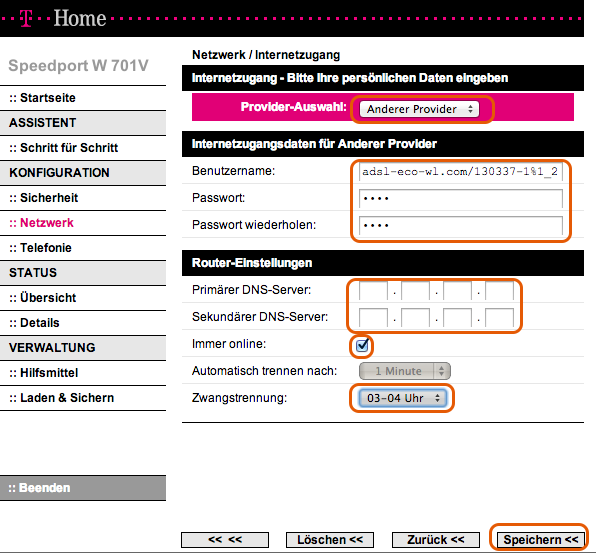

Enter the following data:
Provider selection: Other provider (Another window will appear, which you must confirm with "OK".)
User name: You have received the DSL user name by e-mail, but you can also request it by calling the hotline. The DSL user name looks something like this: adsl-eco-wl.com/123456-7%89.
Password: You received the DSL password in the same e-mail. However, you can also view it in the customer portal.
Primary and secondary DNS server: You do not need to enter anything here
Always online: Tick the box
Forced disconnection: Select a time when you are sure you will not need the Internet (e.g. at night)
Confirm by clicking on "Save".
You can then continue with these instructions Speedport VoIP configuration.
